Ninetyschilling
Starting Member

Status: offline


17 Posts

Posted - Apr 13 2010 :  11:38:40  Show Profile  Reply with Quote

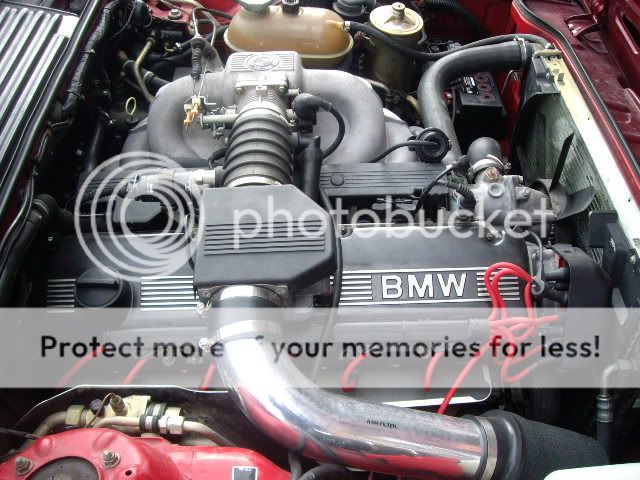

Here a a couple of the initial photos from my 88 635csi Turbo conversion.
These pictures were taken before conversion. My car began life as a late model M30/B35 automatic. I purchased the 745 upgraded K27 kit from David @ EcarToys, which with a little cutting and tweaking worked out great.

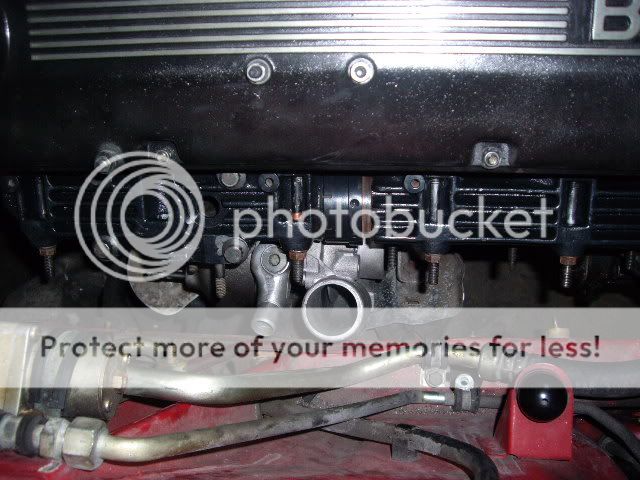

As you can see here (the turbo is sitting on the cross member about 8in back from were it would end up) the E24 motor mount was directly in the way of the turbo's intended location.

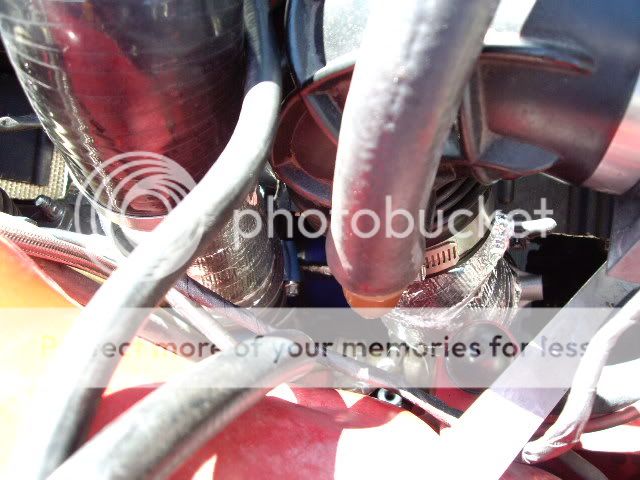

Here was one of the many test fits prior to dozens of the re-clockings required to squeeze the turbo in a location not made for it what-so-ever.

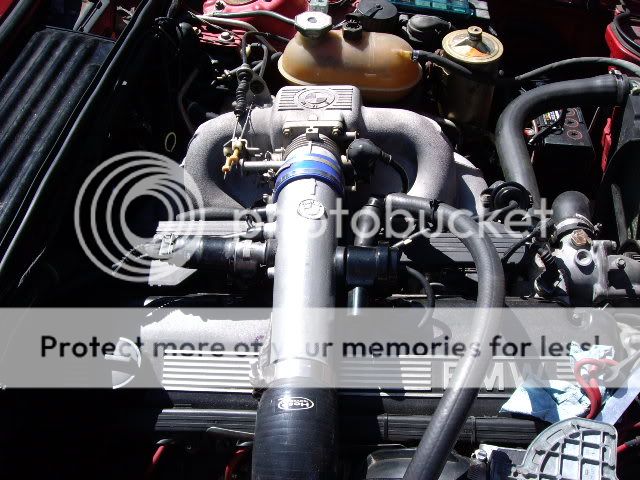

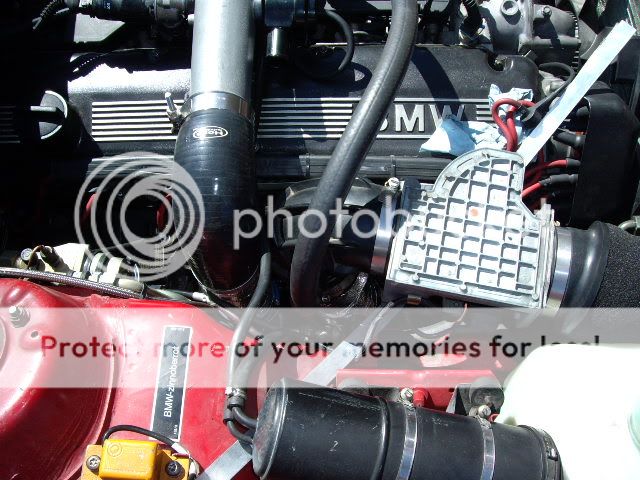

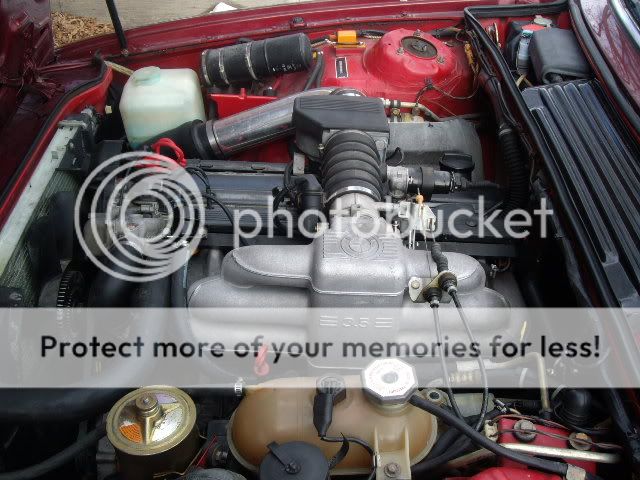

Here is looking down on the finished product, the turbo has enough room, but the waste-gate required some fabrication in order to not rub against the fender-well reinforcement.



The project is finally done, expect for any other mods I do later and fabrication of some sort of AFM mount (if anyone has a suggestion for the AFM I'm all ears).


03 M3 (SOLD)
88 635csi Turbo
91 850i
86 911 Carrera

Edited by - Ninetyschilling on Apr 13 2010 11:43:30

scottie
System Administrator

Status: offline


3845 Posts

Posted - Apr 14 2010 :  18:31:24   View scottie's Photo Gallery  Show Profile  Visit scottie's Homepage  Send scottie an AOL message  Reply with Quote
Very nice! Nice colletion you got there!

Scottie Sharpe
San Jose CA
Discussion Board SYSOP


88 Dinan M5
1968 2002


FOLLOW ME ON FACEBOOK
My Profile
Go To Top Of Page

Ninetyschilling
Starting Member

Status: offline


17 Posts

Posted - Apr 17 2010 :  15:20:35  Show Profile  Reply with Quote
Thanks Scottie, I guess you could say I went overboard on the coupes, but they leave less room for backseat drivers.


03 M3 (SOLD)
88 635csi Turbo
91 850i
86 911 Carrera

Edited by - Ninetyschilling on Apr 17 2010 15:21:26
Go To Top Of Page

lawrencei
Starting Member

Status: offline


8 Posts

Posted - Jun 07 2010 :  15:39:46  Show Profile  Reply with Quote
I Love the 635 Turbo you got there. I just have a stock 635 csi.
Go To Top Of Page

TurboEcab
Starting Member

Status: offline


13 Posts

Posted - Jun 07 2010 :  18:50:07  Show Profile  Reply with Quote
That 6er is amazing especially the color...what are you using for engine management? just wondering as my M635csi is about to go under the knife for same project.
Go To Top Of Page

cliffo
Over 745 Posts!

Status: offline


768 Posts

Posted - Jun 07 2010 :  22:02:11  Show Profile  Reply with Quote
ahhhhhhhhh, the joys of "six". nice car! and yes, I am Biased
Go To Top Of Page

Ninetyschilling
Starting Member

Status: offline


17 Posts

Posted - Jun 12 2010 :  13:23:56  Show Profile  Reply with Quote
Thanks guys. I am using the stock Motronic system with an upgraded chip supplied by David @ ecartoys. Since the last pictures were taken I added a big bore throttle body and a port matched intake manifold, those addtions right there woke the car up as much as the addition of the Turbo! Perhaps one of these days I'll upgrade to a Mega Squirt, but right now I'm working on a oil-cooler install.


03 M3 (SOLD)
88 635csi Turbo
91 850i
86 911 Carrera
Go To Top Of Page

Jay in So-cal
Starting Member

Status: offline


26 Posts

Posted - Aug 14 2010 :  09:35:41  Show Profile  Reply with Quote
Ninety, Were you able to use the 635's stock engine mount in the turbo converison?

'83 e24 635csi Euro 745i Transplant in progress
'00 e38 740iL
Go To Top Of Page

jranmann
Starting Member

Status: offline


9 Posts

Posted - Oct 23 2010 :  16:28:23  Show Profile  Reply with Quote
" Coupes leave less room for backseat drivers..."

Ryan...Myself being a long-time fan of the e24 (my Alpina modified daily-driver is almost 30 years old now) I have also long contemplated just such a turbo converstion, that you've actually bravelly accomplished...Bravo!

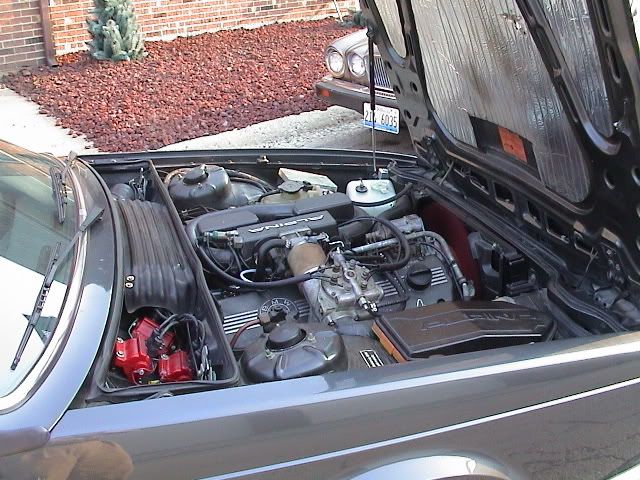

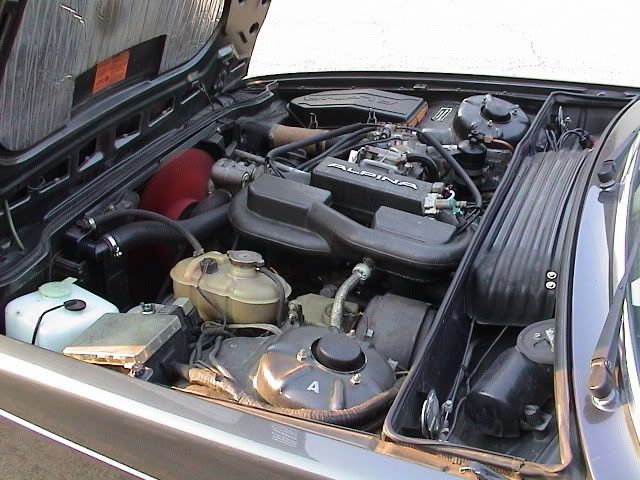

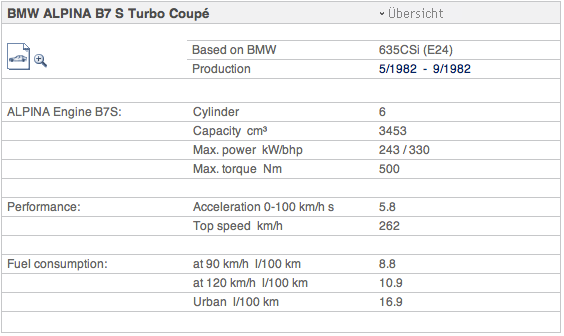

FYI, here's a couple of pics of how Alpina accomplished this same task on their e24 B7 (S) Turbo (3.5) model for the 1982 introduction of the e28 chassis based sixers...PS the OG here in the photo is NOT me, btw







On this conversion, it's too bad these photos don't show clearly how Alpina avoided your/the engine mount/Turbo fitment issue...



Note how BMW 'kindly' retained the 165mph speedo in the US cars? (e.g. 262kph) as perhaps this was their reasoning?
For more info see: http://www.alpina-automobiles.com/en/models-alpina/model-history/bmw-6-series/e24.html
David at ecartoys is quite a good resource, isn't he?
Best of luck with finishing her up...looks great!

Ran

Never trust any driving directions provided by anyone from Texas!

Edited by - jranmann on Oct 23 2010 16:58:29
Go To Top Of Page

Diego_C
Starting Member

Status: offline


18 Posts

Posted - Mar 06 2011 :  07:12:30  Show Profile  Reply with Quote
Did you use the original downpipe from the 745 in your E24? I'm currently busy bolting the 745 turbo setup to an M30B28 E24 and having trouble to get the downpipe fitted.
Any help appreciated.

1983 BMW 628Csi Euro
1970 Opel Manta 2.0 GSI
2005 VW Jetta 2.0 TDI
2006 Opel Meriva 1.3 CDTI
Go To Top Of Page

Ninetyschilling
Starting Member

Status: offline


17 Posts

Posted - Feb 05 2014 :  15:22:36  Show Profile  Reply with Quote
I'd love to have that Alpina intake on my car and I would love to have their intercooler, but alias those bits probably would eclipse the value of my car.


03 M3 (SOLD)
88 635csi Turbo
91 850i
86 911 Carrera
Go To Top Of Page
